Commercial Hydronic Radiators

Towel

Overview



For years now, Europeans have found the key to unlocking a bathroom's potential is the comfort provided by the Runtal line of towel radiators. Runtal Towel Radiators offer comfortable radiant heat in the bathroom while at the same time providing the luxury of warm, dry towels and bathrobes.

 Runtal Hydronic Towel Radiators are available in two basic designs: flat panel and round tube. The flat-panel design Omnipanel, offers enhanced heat output and a clean, low profile design available in five sizes. The round-tube series includes 5 models Neptune, Radia, Solea, Versus and Fain, available in a range of finishes and sizes. Towel Radiators may be found in many of the world's finest hotels, inns and spas.



Styles

Flat Tube Designs

The original Omnipanel Towel Radiator was introduced to North American in 1985 as the flagship of the Runtal Towel Radiator line. The flat tube design provides a large surface area to maximize radiant output, making it both a great source of heat, as well as a beautiful and effective towel warmer/dryer.  The Hydronic Omnipanel is designed to be an integral part of your closed loop hydronic heating system, and can be the primary source of heat for bathrooms and anywhere floor space is limited. Available in a wide array of sizes, this versatile towel radiator offers a unique and effective answer for just about any room design.



Round Tube Designs

Runtal offers five unique round tube hydronic towel radiator models offering a design solution for any bathroom application. Our round tube designs are engineered to be part of your closed loop hydronic heating system. Each model provides the radiant heat needed to not only warm your towels, but actually dry them also.  Ranging from classic minimalist designs to modern architectural, our five models are available in a variety of colors and finishes to enhance just about any bathroom design plan.

Flat Tube Designs

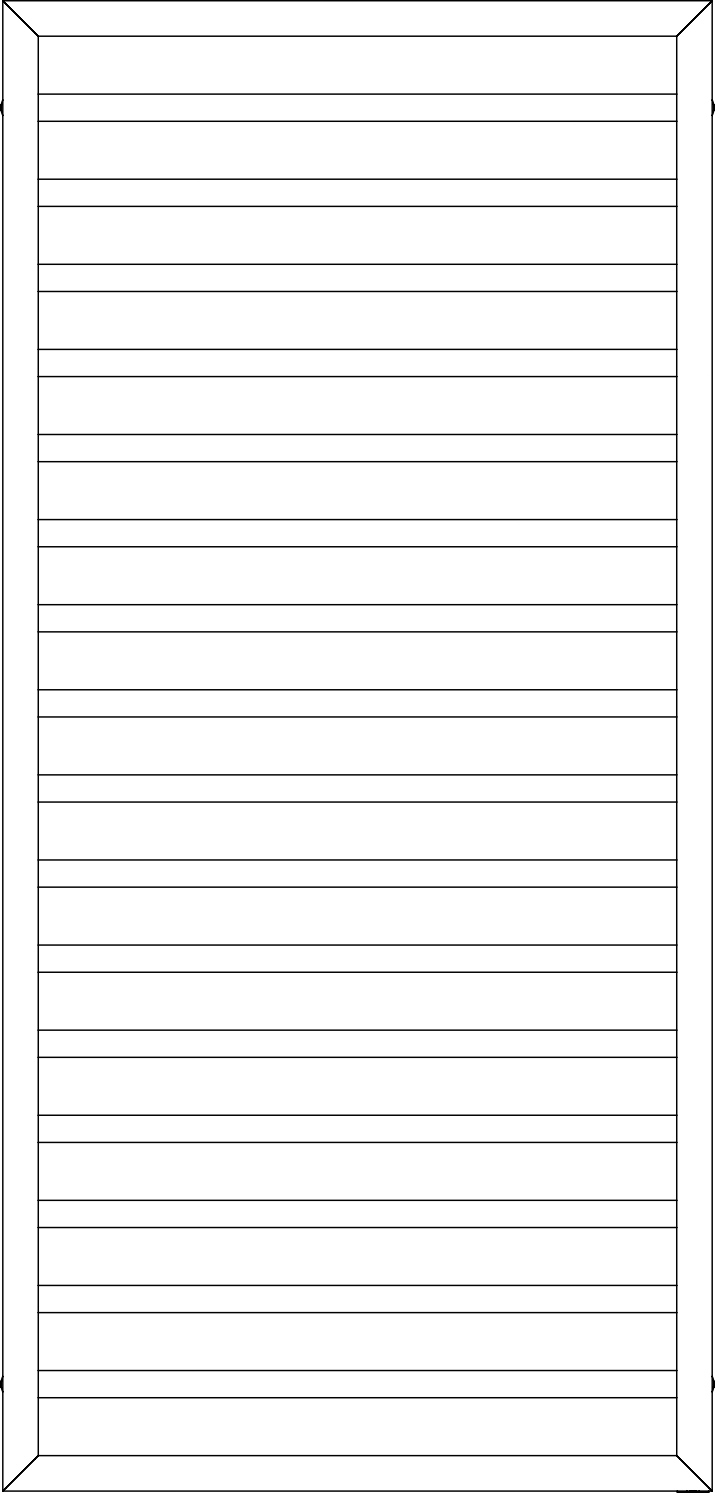

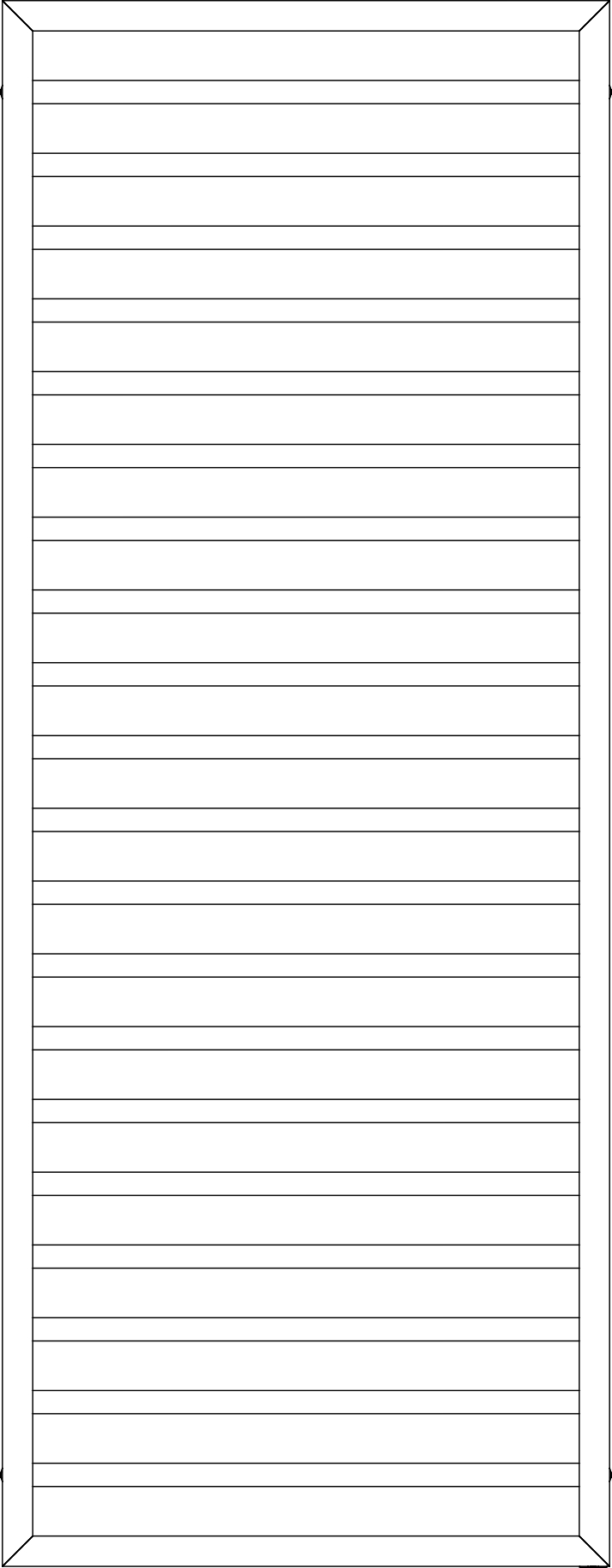

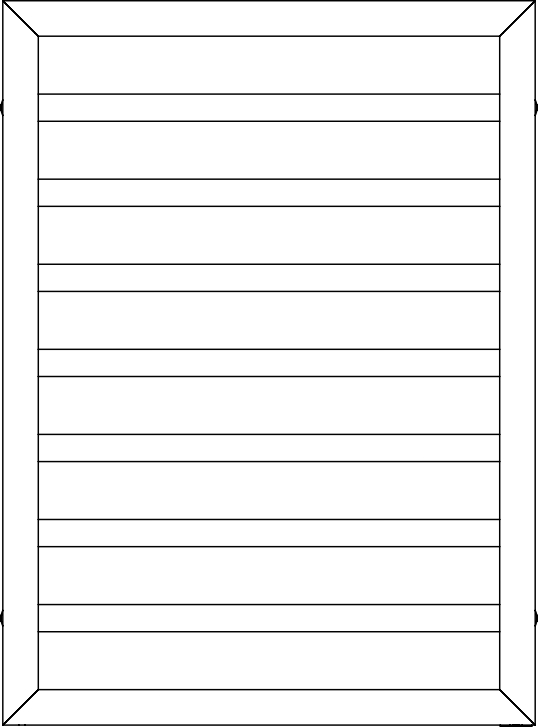

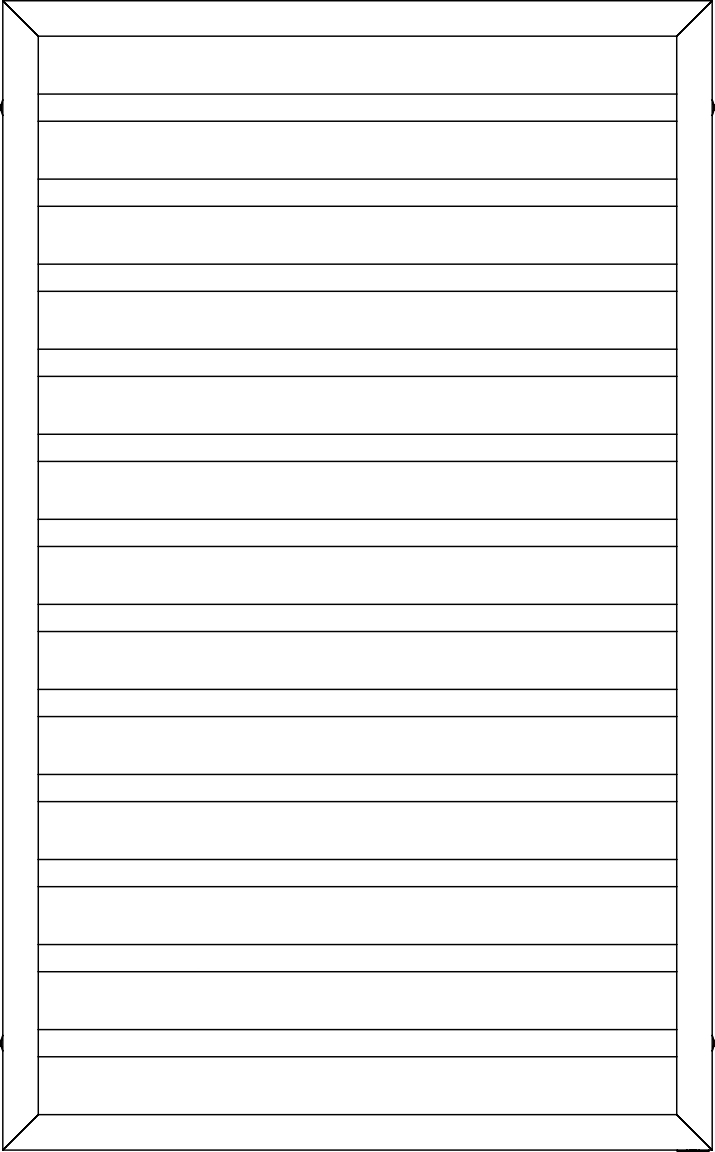

Omnipanel




Model:
Height:

TW9*
26.1"

TW12*
34.8"

TW15*
43.6"

TW18
52.3"

TW21
61.1"


Hydronic 16"
Wide
1600 BTUH 1920 BTUH 2400 BTUH 3040 BTUH 3520 BTUH
Hydronic 20"
Wide
2000 BTUH 2400 BTUH 3000 BTUH 3800 BTUH 4400 BTUH
Hydronic 24"
Wide
2400 BTUH 2880 BTUH 3600 BTUH 4560 BTUH 5280 BTUH
Hydronic 30"
Wide
3000 BTUH 3600 BTUH 4500 BTUH 5700 BTUH 6600 BTUH
Hydronic 36"
Wide
3600 BTUH 4320 BTUH 5400 BTUH 6840 BTUH 7920 BTUH

Heat Outputs at 180°F AWT & 70°F Room Temp

Compatible with Closed Loop Forced Hot Water Heating Systems.

Overview (PDF)
Specifications (PDF)
Owner's Manual & Installation Instructions (PDF)

Round Tube Designs

Runtal Neptune

Height* :
Width:
Depth:
33.1"
19.5"
4.2"
45.7"
19.5"
4.2"
Wattage & Heat Output:
Hydronic Model

Heat Output @180°F
Painted Finish
Chrome Finish and Stainless Steel

NTR-3320

2228 BTUH
1782 BTUH

NTR-4620

2706 BTUH
2213 BTUH


Neptune models are available in stainless steel, polished chrome or painted finishes.

Painted and Chrome units must operate with a closed loop hot heating system. The stainless steel version may operate in either a closed loop system or an open (domestic water) system.

Brochure (PDF)
Overview (PDF)
Specificiations
Owner's Manual & Installation Instructions (PDF)

Runtal Radia



Height* :
Width:
Depth:

28.4"
23.6"
3.6"

45.4"
23.6"
3.6"

45.4"
29.5"
3.6"


Wattage & Heat Output:

Hydronic Model
Heat Output @180°F
RTR-2924
2136 BTUH
RTR-4624
3358 BTUH
RTR-4630
4150 BTUH




Compatible with Closed Loop Forced Hot Water Heating Systems.

Brochure (PDF)
Overview (PDF)
Specifications (PDF)
Owner's Manual & Installation Instructions (PDF)

Runtal Versus




OR

Height* :
Width:
Depth:

51.5"
22.8"
3.2"

68.5"
22.8"
3.2"




Wattage & Heat Output:

Hydronic Model
Heat Output @180°F
VTR-5223
2656 BTUH
VTR-6923
3494 BTUH





&nbps;
Compatible with Closed Loop Forced Hot Water Heating Systems.

Brochure (PDF)
Overview (PDF)
Specifications (PDF)
Owner's Manual & Installation Instructions

Runtal Solea



Height* :
Width:
Depth:


33.8"
19.7"
5.5"

53.3"
19.7"
5.5"

Wattage & Heat Output:

Hydronic Model
Heat Output @180°F
STR-3420
2014 BTUH
STR-5420
3108 BTUH




Compatible with Closed Loop Forced Hot Water Heating Systems.

Brochure (PDF)
Overview (PDF)
Specifications (PDF)
Owner's Manual & Installation Instructions (PDF)

Runtal Fain

The solid stainless steel Runtal Fain is quintessential minimalism integrating square and round elements. It goes well with either classical or contemporary decors.

Because it is stainless steel construction, the Fain is the one Runtal product that can operate on both a closed-loop and open (domestic) system.



Height*:

Width:

Depth:

33.1"

19.7"

3.5"


Models Wattage & Heat Output:

Hydronic FTR3320

984 BTUH @ 180° Water







Brochure (PDF)

Overview (PDF)

Specifications (PDF)

Owner's Manual & Installation Instructions (PDF)

The Runtal Difference

Durability

These radiators are built to last. One-piece fully welded steel construction and an electrostatically applied advanced powder coat finish ensure years of lasting safe and lasting beauty.

Versatility

By design, Runtal Towel radiators offer an endless array of opportunity for installation wherever warmth is needed and can either blend into your architecture or stand out as a central piece of the design.

Simple Installation

Runtal Hydronic Towel Radiators can be plumbed to be integral to you existing hot water heating system easily. With a variety of different shut off or control valve options available (separately), installation is simple and heating control can be integral or separately adjusted.  (Note: Runtal highly recommends installation by a professional plumbing contractor to ensure proper building and safety codes are met)

Safe & Sanitary Comfort

Runtal Radiators provide soft but effective radiant heat and are constructed with no sharp edges as in the case of some press welded products. Further, the entire smooth surface rejects dust build-up and is easily cleaned.

Design & Color Options

With a vibrant and varied palette, you can choose a shade that will blend into the background or add an eye-catching focal point to your room. Whether you’re decorating a neutral space, or you’re eager to inject character and color, there’s an ideal match for you.

You can choose from a range of standard colors or pay a little extra for a custom shade for your home. For custom color options please visit our Design Assistance and Custom Products Section where our team can help you find the exact match you are looking for.

View Color Options
