Model Type RF
BTUH/ft Ratings

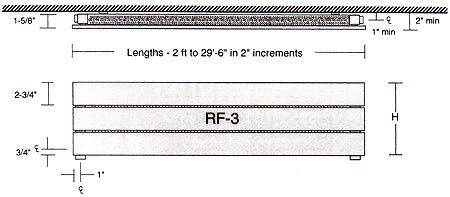

RF-3 with Both Side & Vertical Connections - Shown for Example Only

Technical Data For All RF Models Is Included Below

MODEL
TYPE
HEIGHT
H
BTUH/FT OUTPUT @ LISTED AWT & 65F EAT DRY WT
lbs/ft
215F 190 180 170 160 150 140 130 120

RF-1 2-3/4" 545 427 383 340 299 258 219 182 146 1.9
RF-2 5-3/4" 867 680 610 542 476 411 349 290 233 3.5
RF-3 8-5/8" 1118 878 787 699 613 530 451 374 300 5.1
RF-4 11-1/2" 1351 1060 951 844 741 641 544 452 363 7.1
RF-5 14-3/8" 1718 1348 1209 1073 942 815 692 574 461 9.9
RF-6 17-1/4" 1981 1555 1394 1238 1087 940 798 662 532 11.7
RF-7 20-1/4" 2145 1762 1580 1403 1232 1065 905 751 603 13.8
RF-8 23-1/8" 2387 1873 1680 1491 1309 1132 962 798 641 16.4
RF-9 26-1/8" 2527 1983 1779 1579 1386 1199 1018 845 679 17.5
RF-10 29" 2660 2088 1872 1662 1459 1262 1072 889 715 18.6

NOTE: Heat Outputs for various AWT's include 15% Heat Effect for placement along outside walls. Use the 215 F Output Rating with the Correction Factor for more specific design conditions. Medium Pressure increases Dry Weight by 10%, High Pressure increases Dry Weight by 15%
